Weapon TC01 Tracklocross Frameset
| Availability: | In stock |

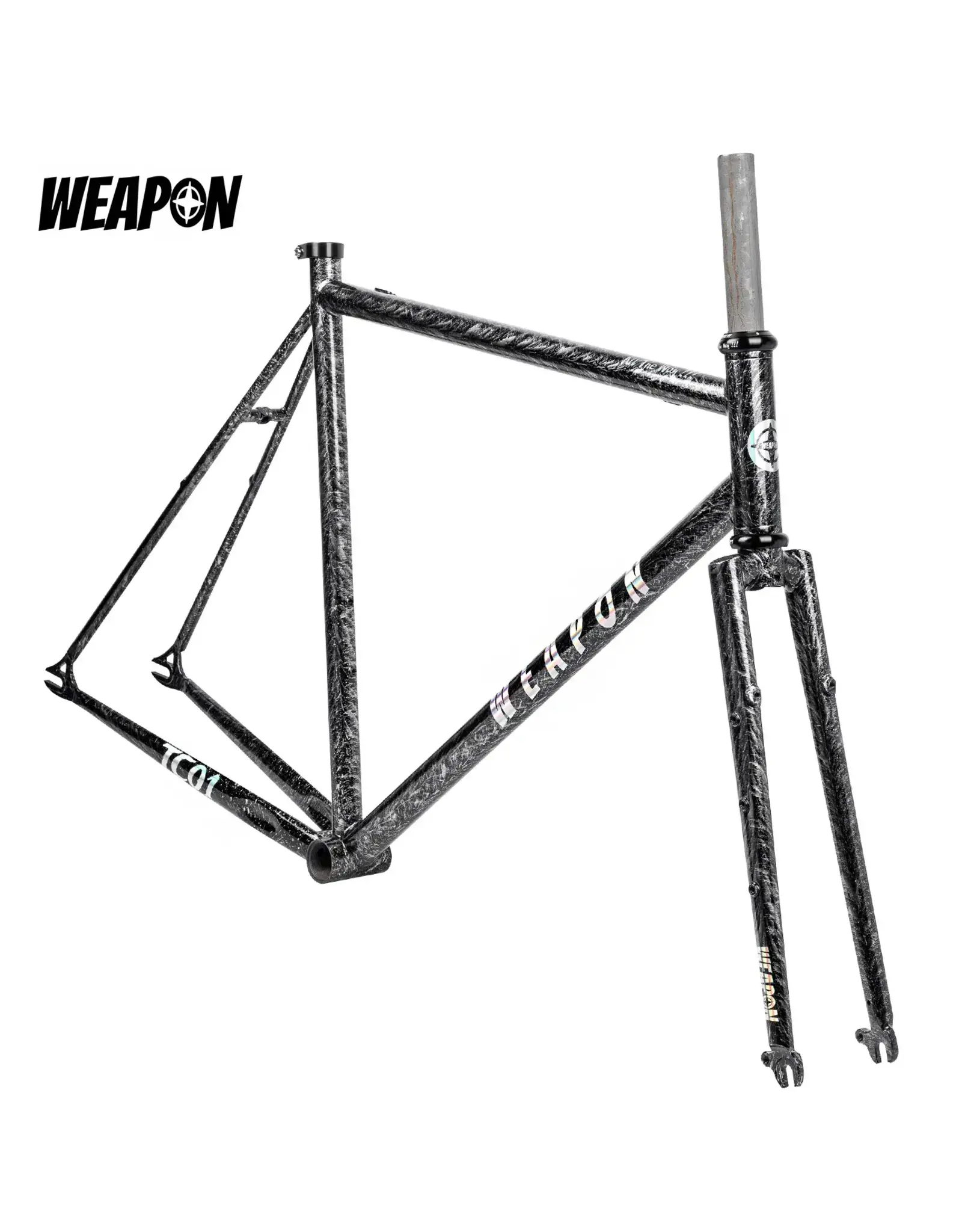

The WEAPON TC01 is our latest high-performance single-speed / Tracklocross frameset.
We design this tracklocross with lightweight Chromoly steel tube construction and multiple rack mounting design for your long-distance traveling.

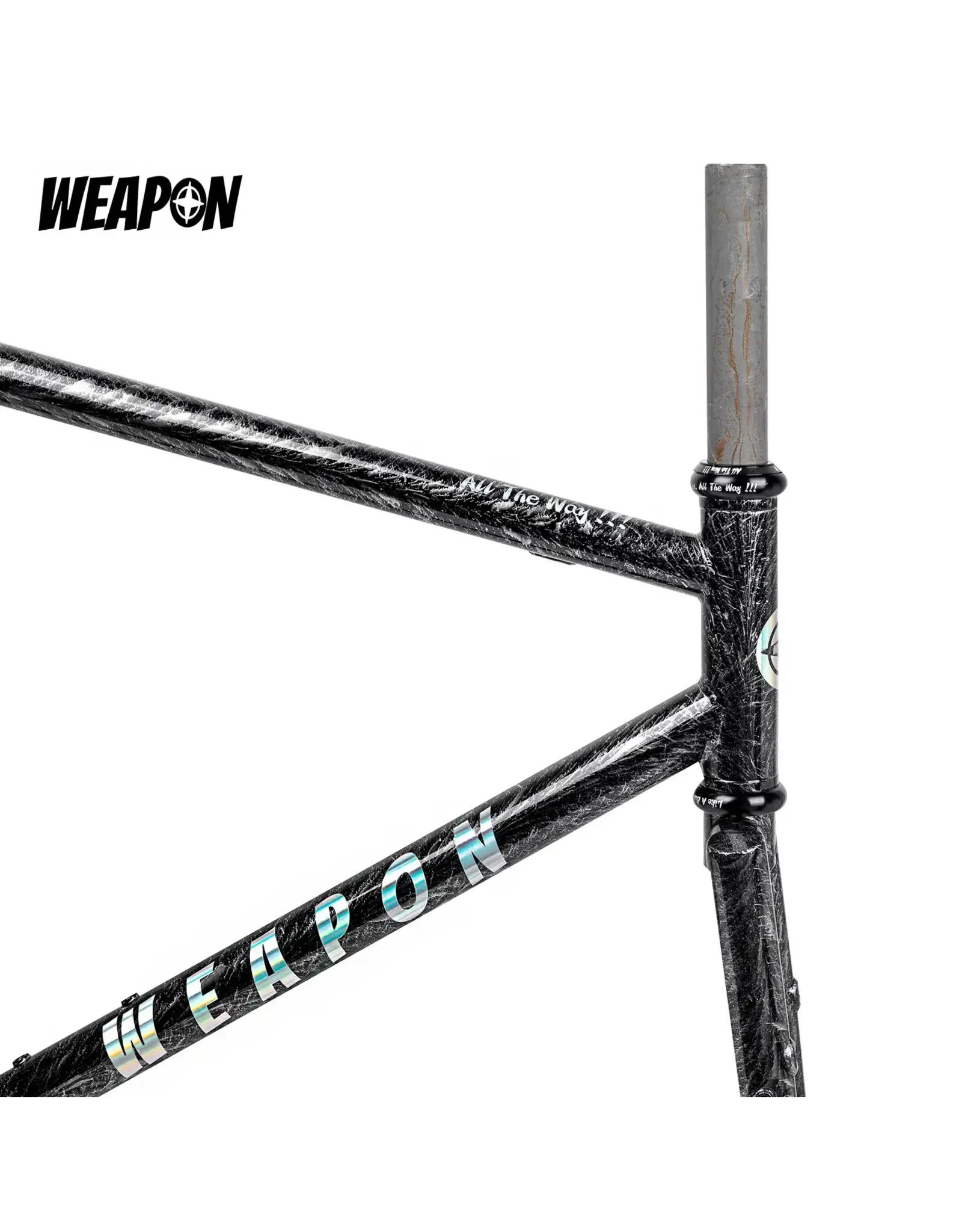

This Steel tracklocross bike frameset employs our triple-butted tubes, conical CNC’d head tube, and vintage fork.
We focus on every detail on the frameset, perfect tig welding for all joints as shown in the display photo.
* Up to 40c tire clearance.
* Inner cabling design.
* Rack mounting design for the front and back.
* Light weight & rust-proof layer.
* Impressive laser logo.
* 2 water holder mounting designs.
* Canti brake / V brake mounting design.
FRAME SPECIFICATION:
| Frame Material | Heat-treated Butted Chromoly Steel Tubing |
| Headset | IS 34mm /34mm – 28.6mm (Included) |
| Seat Post | OD: Ø27.2mm (Not included) |

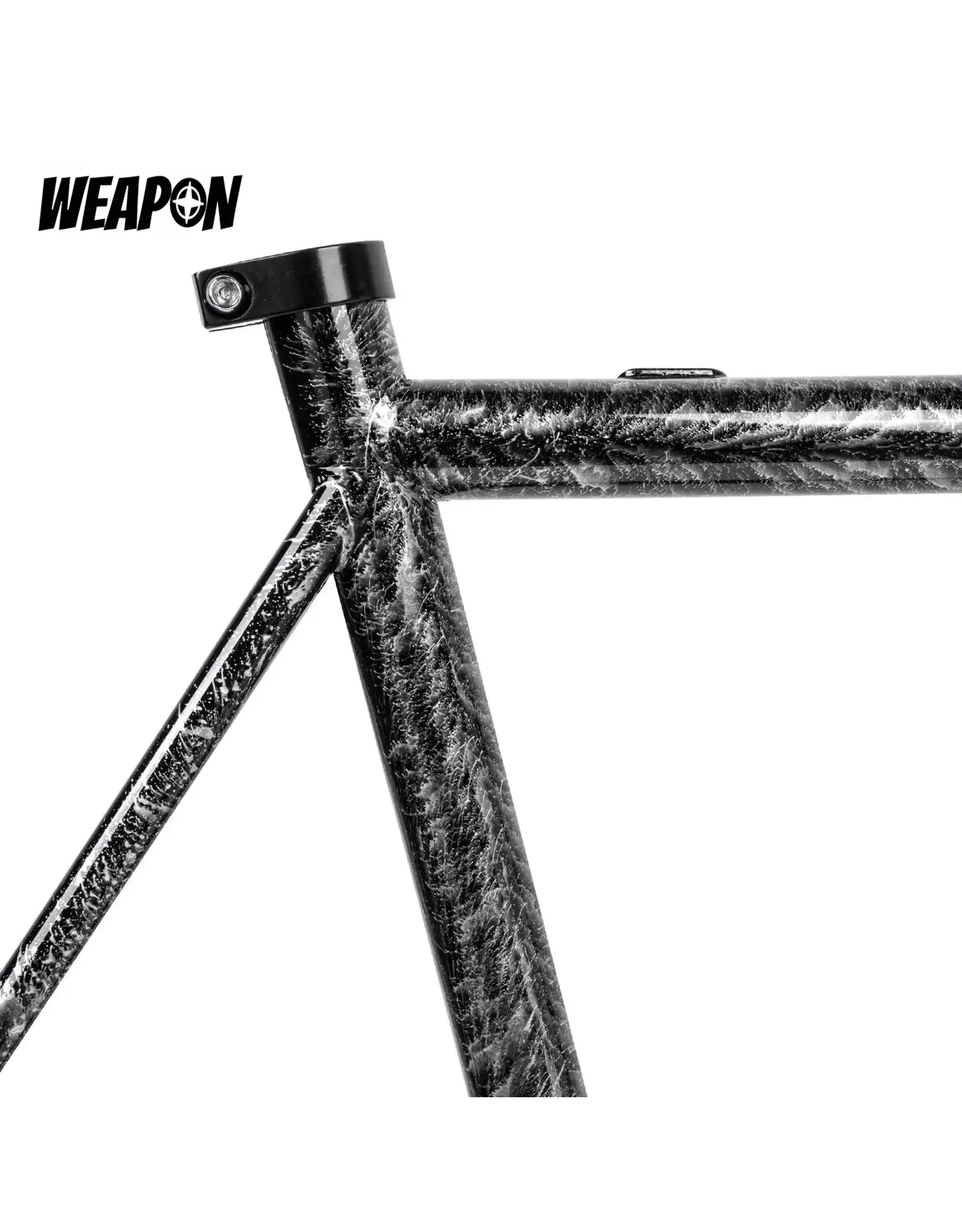

| Seat Clamp | ID: Ø30.2mm (Included) |

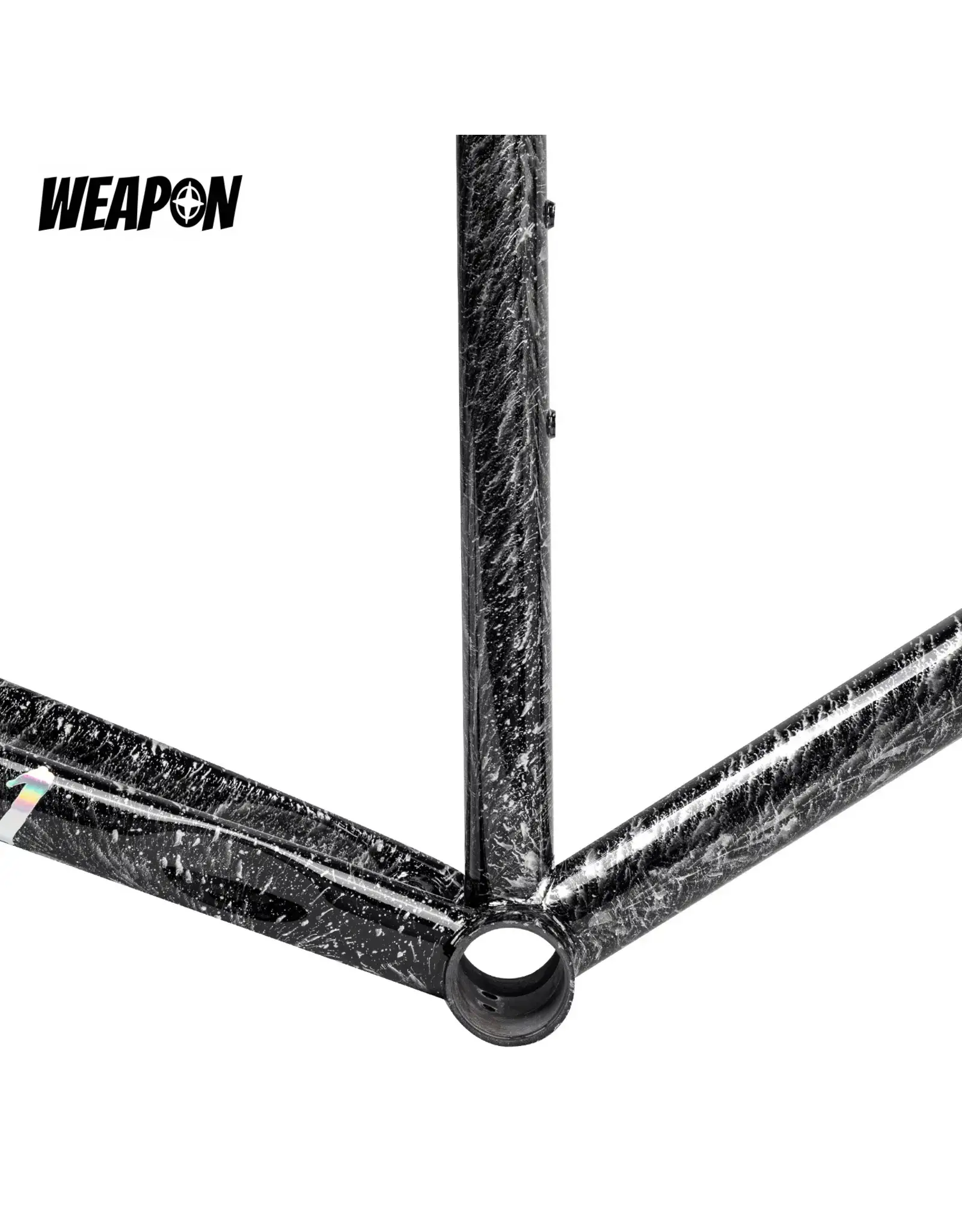

| Standard Movement Box/ BB | BSA 68mm English Thread. |
| Cable Routine | Internal via top tube |
| Tyre Clearance | Up to 40c |
| Brake mounting | V Brake with removable posts |
| Weight | Frame – 1690g (Size M) |
| Hub Spacing / Wheel mounting | Rear 120mm / Quick-release mounting |
FORK SPECIFICATION:
| Fork Material | Heat-treated Butted Chromoly Steel Tubing |
| Fork Steerer | – Top OD: Ø28.6mm (1-1/8 Inch) – Bottom OD: Ø30mm. – Length: 300mm |
| Fork Rake | 45mm |
| Cable Routine | External cable routing |
| Brake mounting | V Brake with removable posts |
| Hub Spacing / Wheel mounting | 100mm / OD: Ø9mm Quick-release / Bolting mounting |
| Tyre Clearance | Up to 700 x 40c |
| Weight | Fork – 950g (Uncutted). |
